Made-to-measure rectangular ducts

Made-to-measure rectangular ducts and fittings in galvanised and stainless steel, with frame connections. Each type shows its versions and the dimensions to give us.

Key data

All dimensions in mm. Every piece is made to measure: send us the dimensions from the drawing, with the code if there is one.

Dimensions
Made to measure: you choose the cross-section A × B and the length.
Material
Galvanised steel (Z275), stainless steel 304 and stainless steel 316.
Connection
Frame connection: each piece has a 20 or 30 mm frame at its ends.
Airtightness
Airtightness class B, C or D to EN 1507.

Choose a product type

Each type has its own page with a dimension drawing for each version.

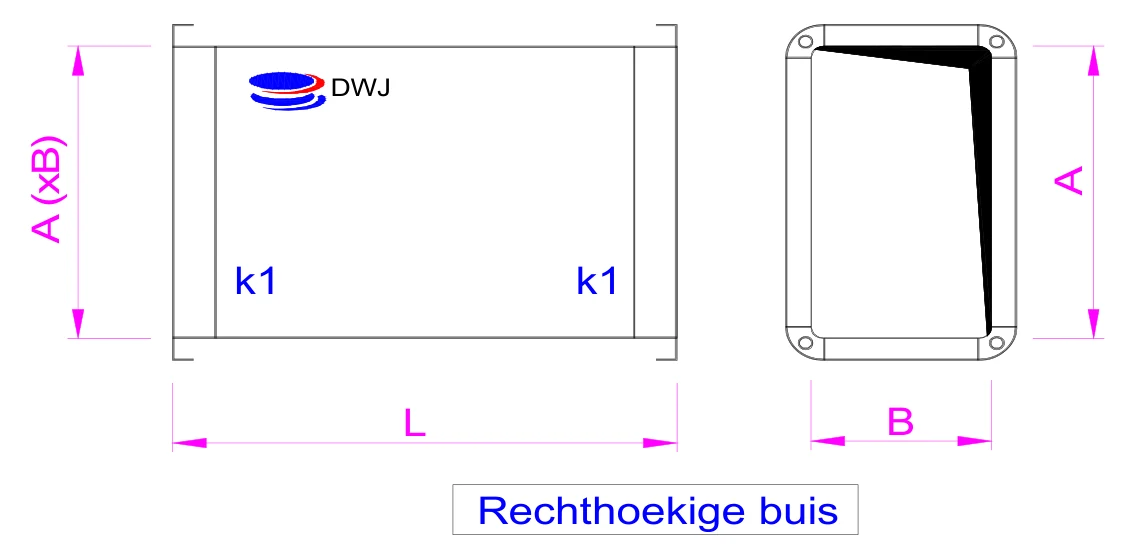

Straight rectangular ducts

Made-to-measure straight rectangular ducts with a frame at both ends. You choose the cross-section A × B and the length L.

View sizes

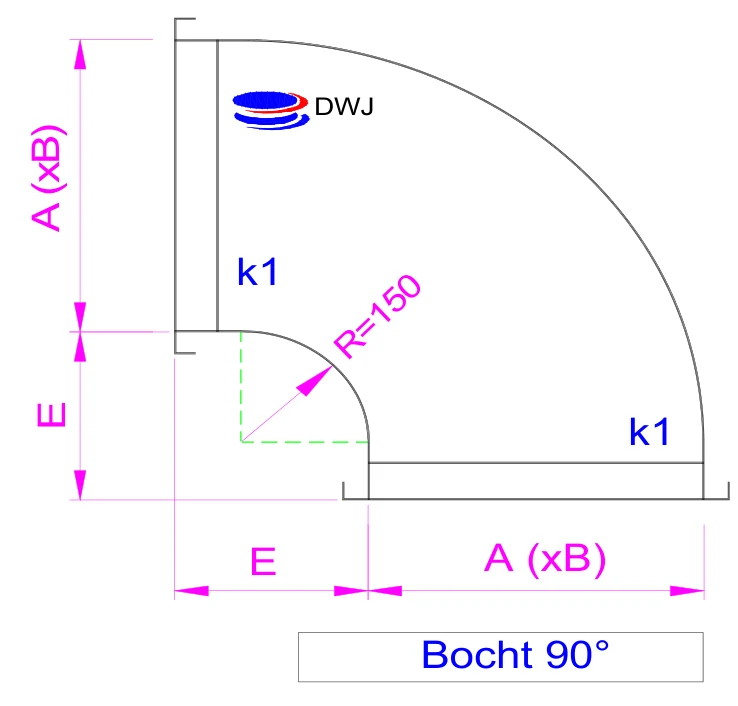

Rectangular bends

90° bends with an inner radius of 150 mm, with or without turning vanes. We also make special bends to measure, with another angle or a different size at each end.

View sizes

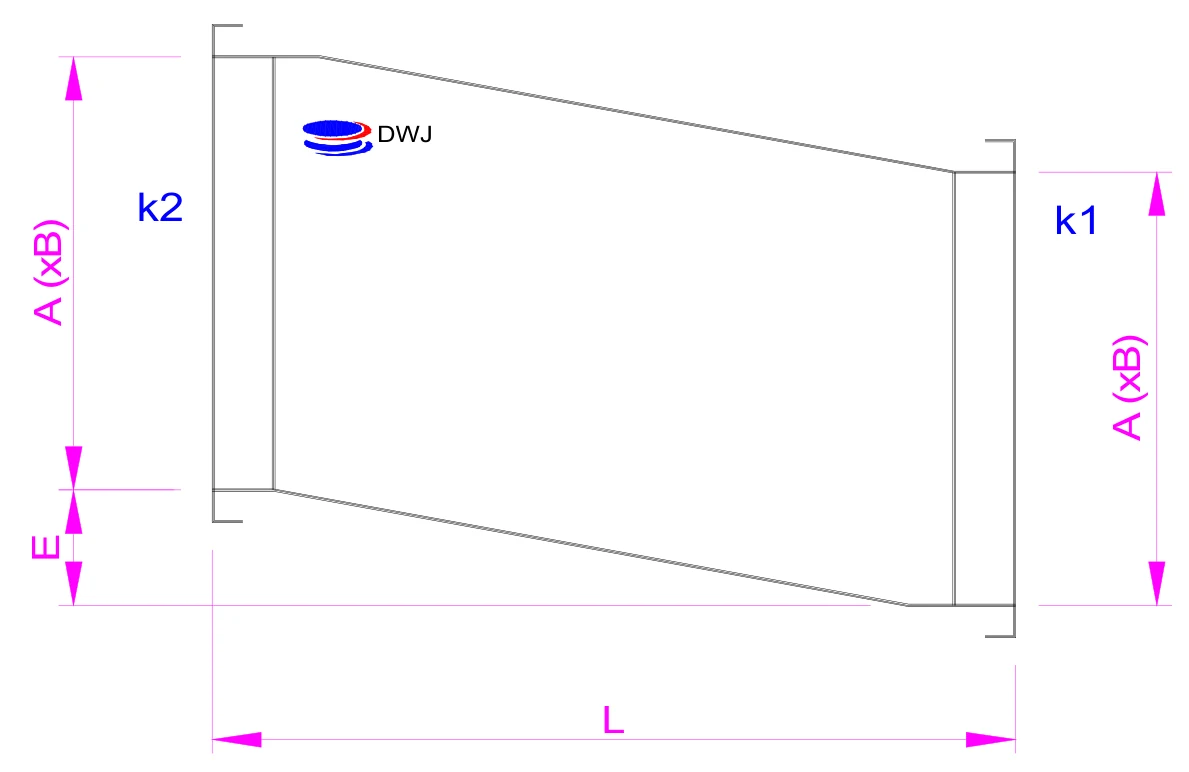

Rectangular offsets

An offset shifts the duct by a distance E, with the same or a different cross-section at each end.

View sizes

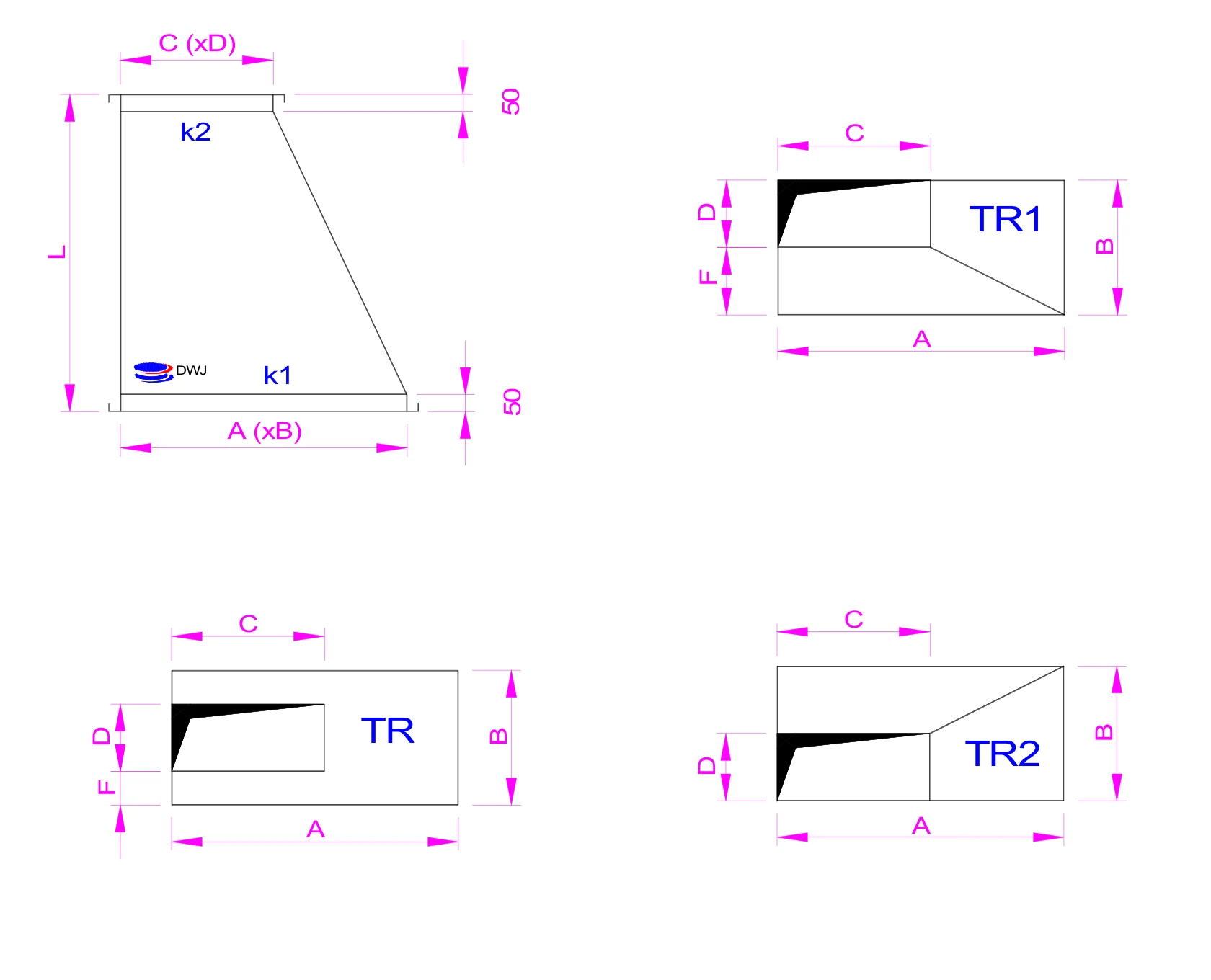

Transformation pieces

A transformation piece goes from a cross-section A × B to a smaller cross-section C × D, with a 50 mm straight section at both ends. The position of the small opening sets the type.

View sizes

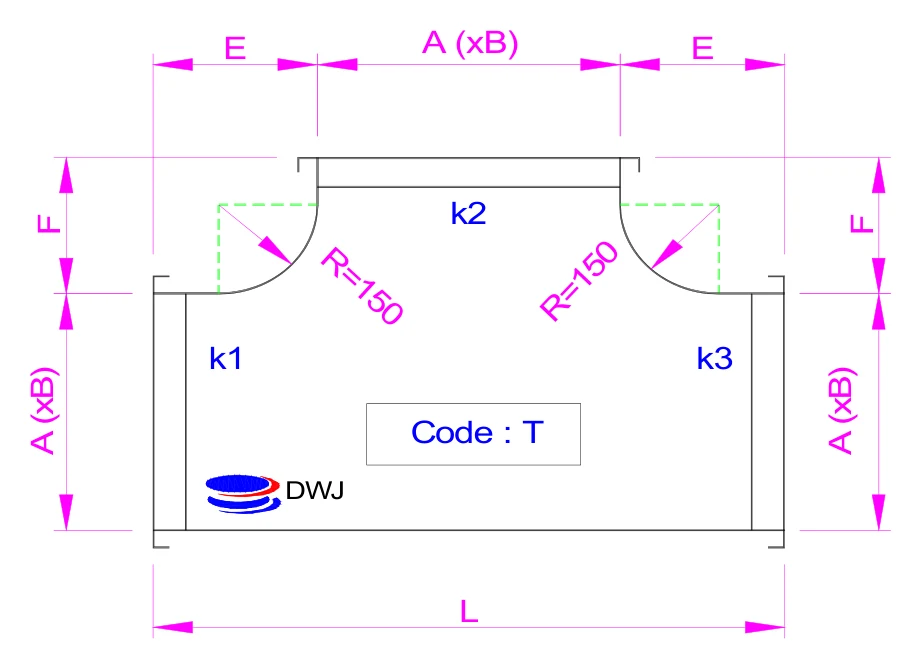

Rectangular tees

Tees with a square branch (T, TRD) or an angled branch (T a). The square transitions are rounded with a 150 mm radius.

View sizes

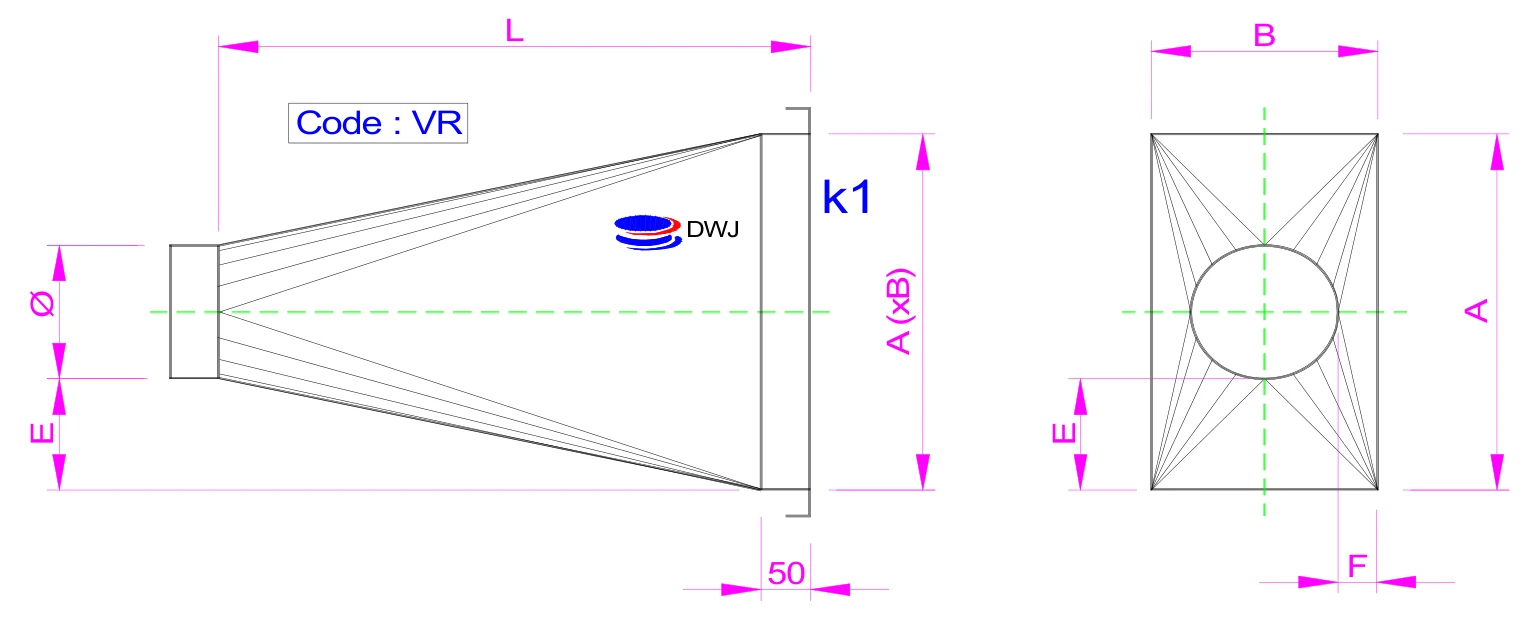

Square-to-round transitions

Transitions from a rectangular duct A × B to a round duct Ø, concentric or eccentric.

View sizes

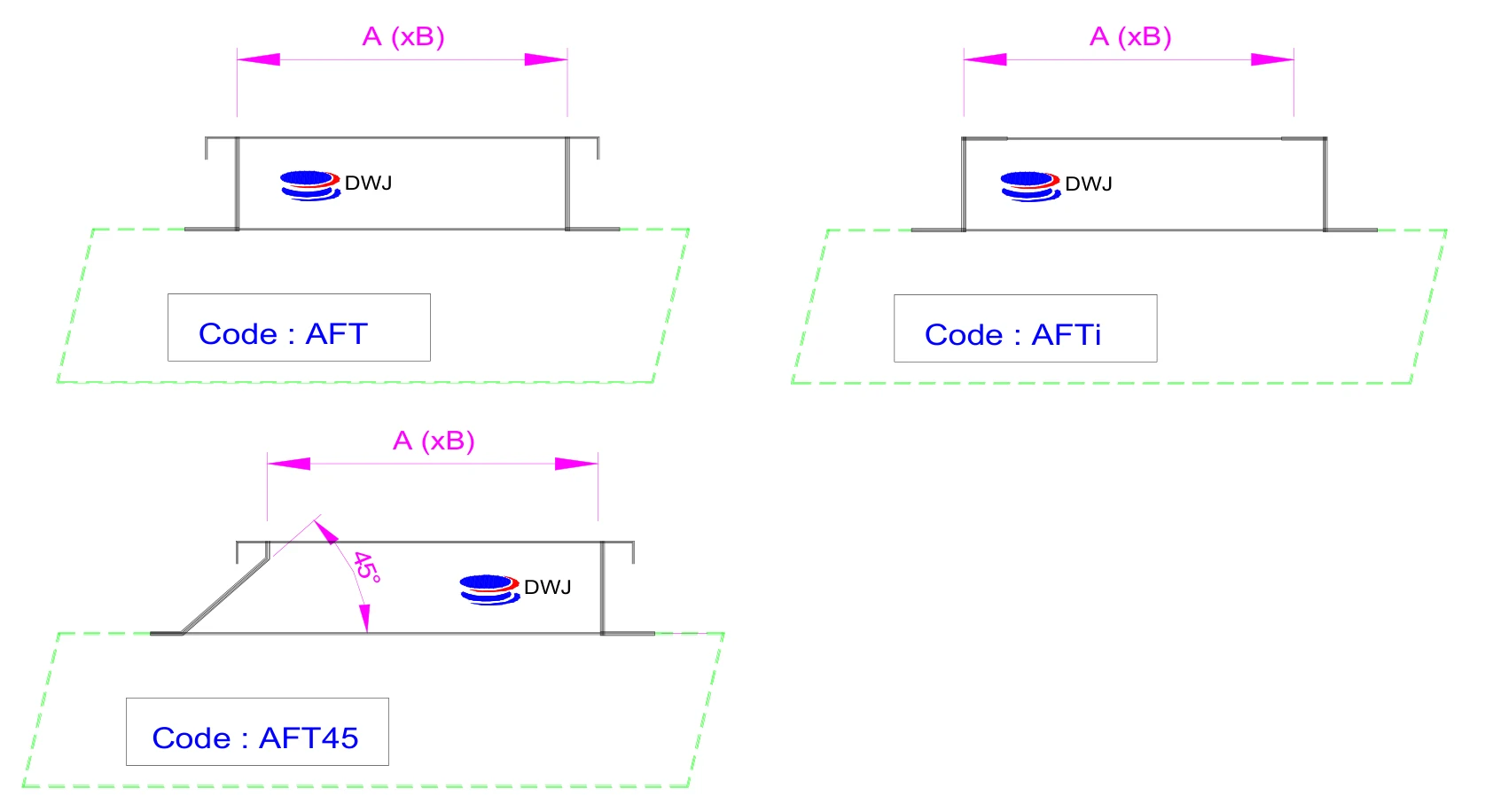

Rectangular take-offs

Take-offs A × B to connect a rectangular duct to an existing duct, square or with a 45° entry.

View sizes

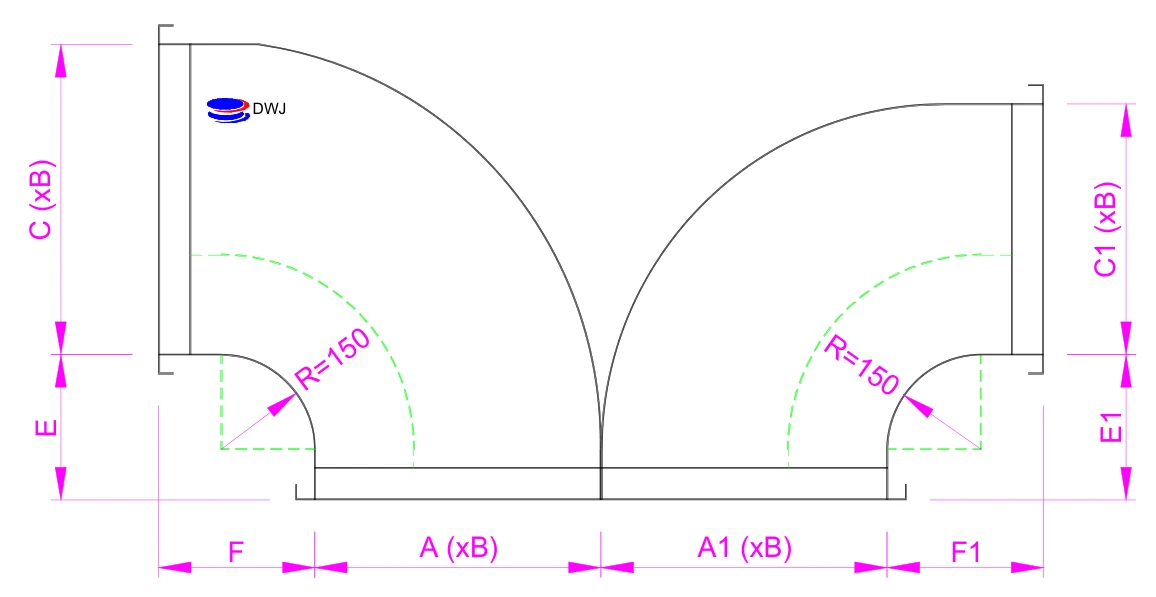

Combined fittings

Two fittings in one piece: two bends side by side, a duct with a bend or a duct with an offset.

View sizes

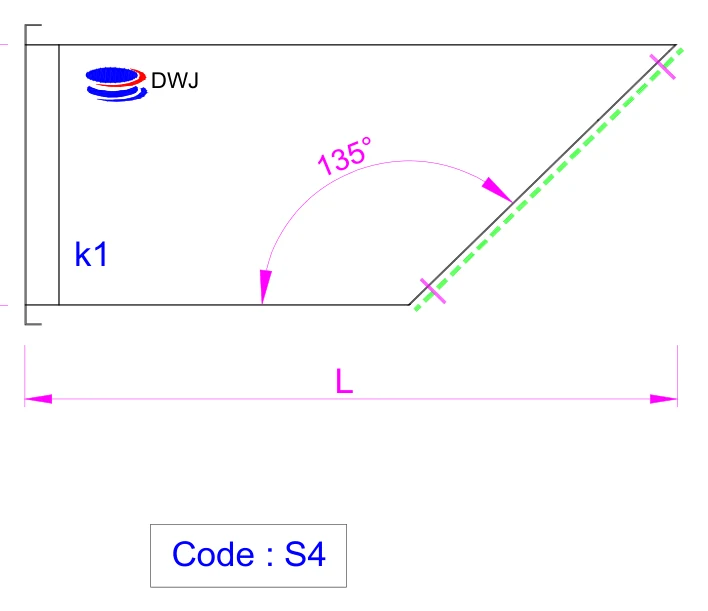

Miscellaneous

Ducts and bends with a slanted outlet, and cowls with or without a grille.

View sizes

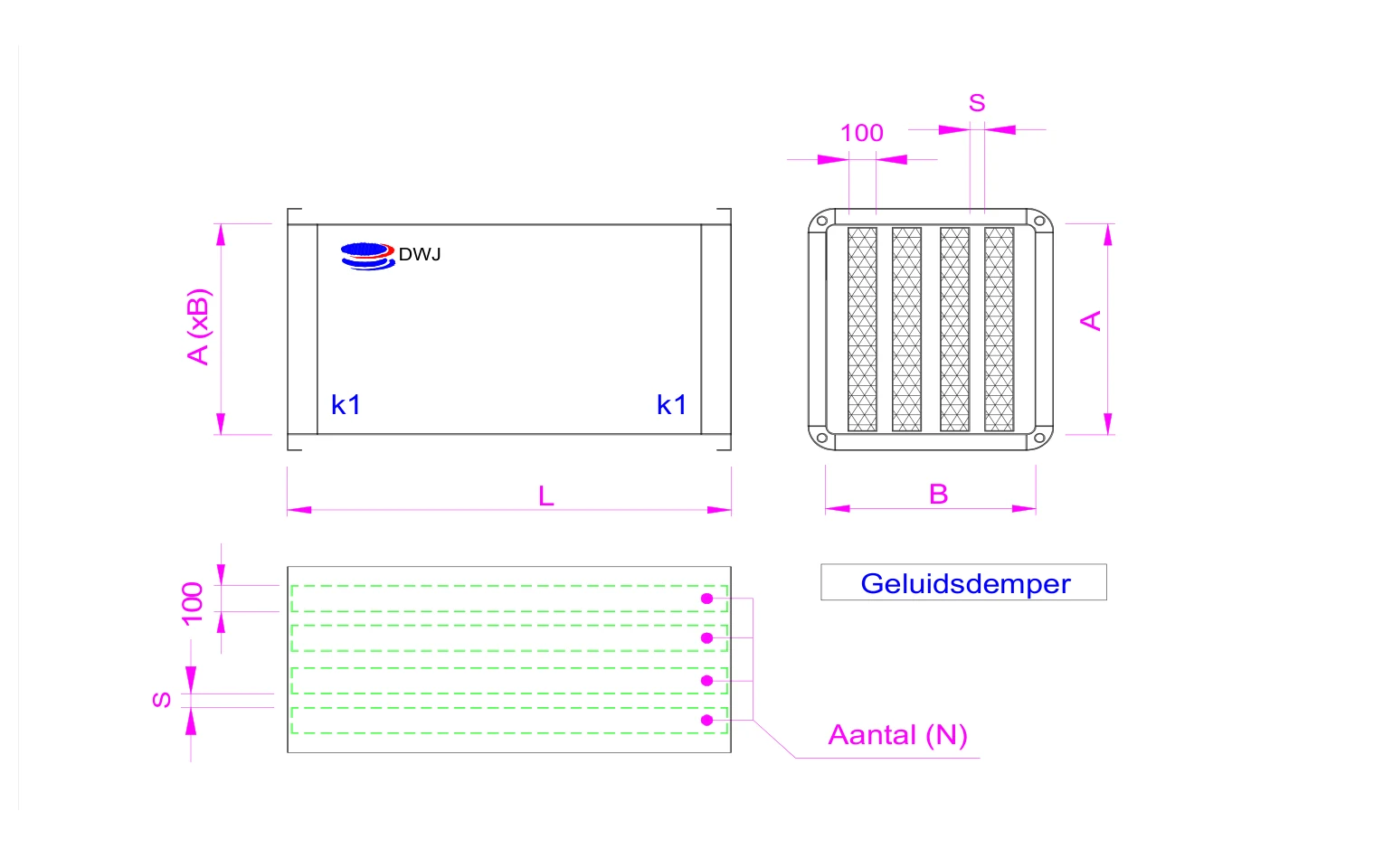

Rectangular silencers

Silencers with baffles of 100 or 200 mm thick. The number of baffles sets the width B; the height A ranges from 300 to 1800 mm.

View sizes

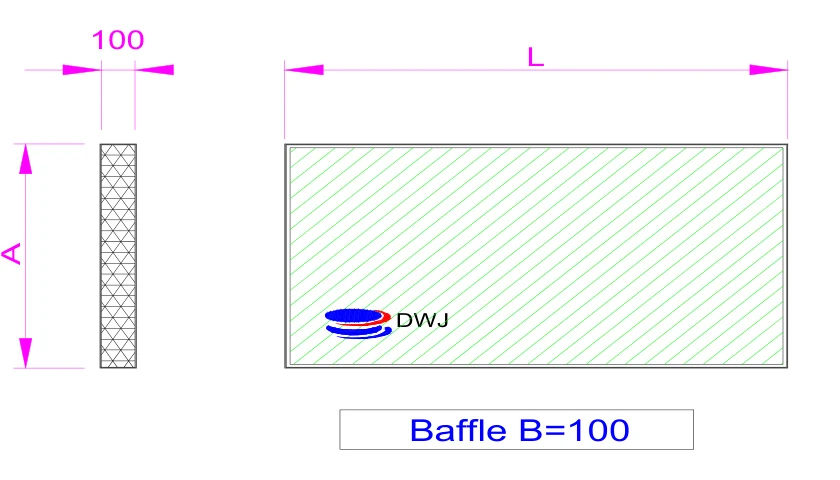

Sound-attenuating baffles

Separate sound-attenuating baffles of 100 or 200 mm thick, in lengths from 500 to 1500 mm.

View sizes

Frames and accessories

Separate frames, covers, grilles and flexible connections for rectangular ducts. We also fit take-offs and make cut-outs for you.

View sizes

Insulation

We insulate rectangular ducts and fittings inside or outside with Armaflex, or outside with Rockwool with aluminium foil.

View sizes
