Circular ducts

Flat take-offs

A flat take-off connects a circular duct to a flat surface, such as a plenum or a rectangular duct. Straight or at an angle of 15° to 60°.

Key data

Diameters
Ø 80 to Ø 1250 mm
Material
Galvanised steel (Z275), stainless steel 304 and stainless steel 316.
Connection
Male fittings with a U-shaped EPDM gasket that slide into the spiral duct.
Airtightness
Pressed pieces: airtightness class D, all other pieces: class C, to EN 1507.

Need a price or lead time?

Ask through the form, or email your list of codes and quantities.

Ask for price or lead timeEmail your list

Sizes

All sizes in mm. The article code is shown next to each version: replace Ø with the size you need.

Flat take-offs

ILRs-Ø | ILs-Ø | ILFs-Ø

ILs in all sizes. ILRs from Ø 80 to Ø 400, except Ø 280. ILFs on request.

Dimension drawing Flat take-offs
Ø
80
100
125
150
160
180
200
225
250
280
300
315
355
400
450
500
560
600
630
710
800
900
1000
1250

Angled flat take-offs

ILVs-Ø

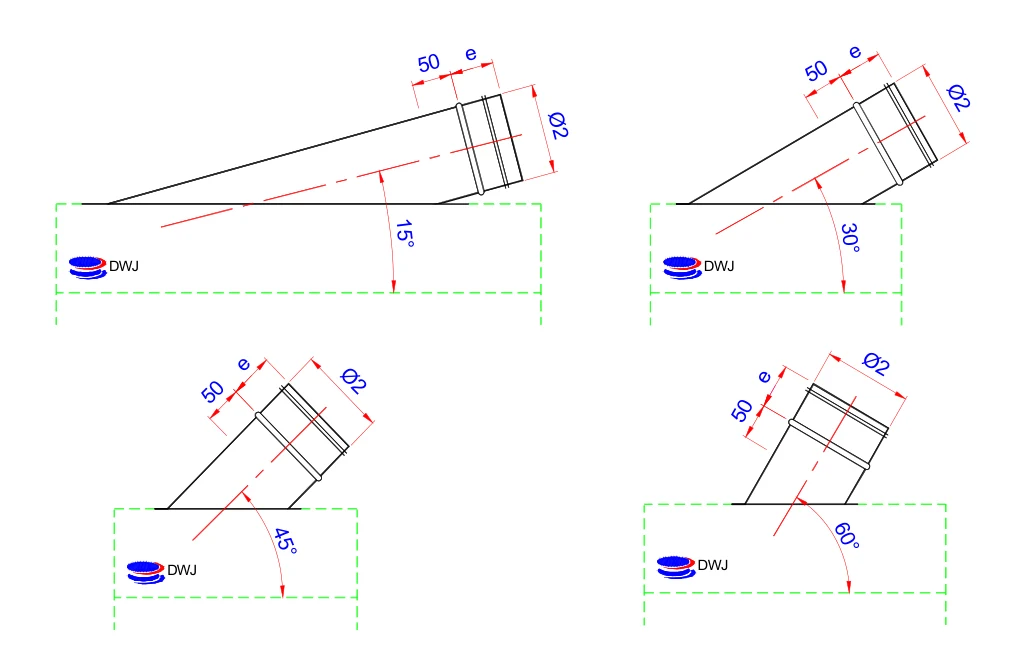

Dimension drawing Angled flat take-offs
ØAngles
8015°, 30°, 45°, 60°
10015°, 30°, 45°, 60°
12515°, 30°, 45°, 60°
15015°, 30°, 45°, 60°
16015°, 30°, 45°, 60°
18015°, 30°, 45°, 60°
20015°, 30°, 45°, 60°
22515°, 30°, 45°, 60°
25015°, 30°, 45°, 60°
28015°, 30°, 45°, 60°
30015°, 30°, 45°, 60°
31515°, 30°, 45°, 60°
35515°, 30°, 45°, 60°
40015°, 30°, 45°, 60°
45015°, 30°, 45°, 60°
50015°, 30°, 45°, 60°
56015°, 30°, 45°, 60°
60015°, 30°, 45°, 60°
63015°, 30°, 45°, 60°
71015°, 30°, 45°, 60°
80015°, 30°, 45°, 60°
90015°, 30°, 45°, 60°
100015°, 30°, 45°, 60°
125015°, 30°, 45°, 60°
